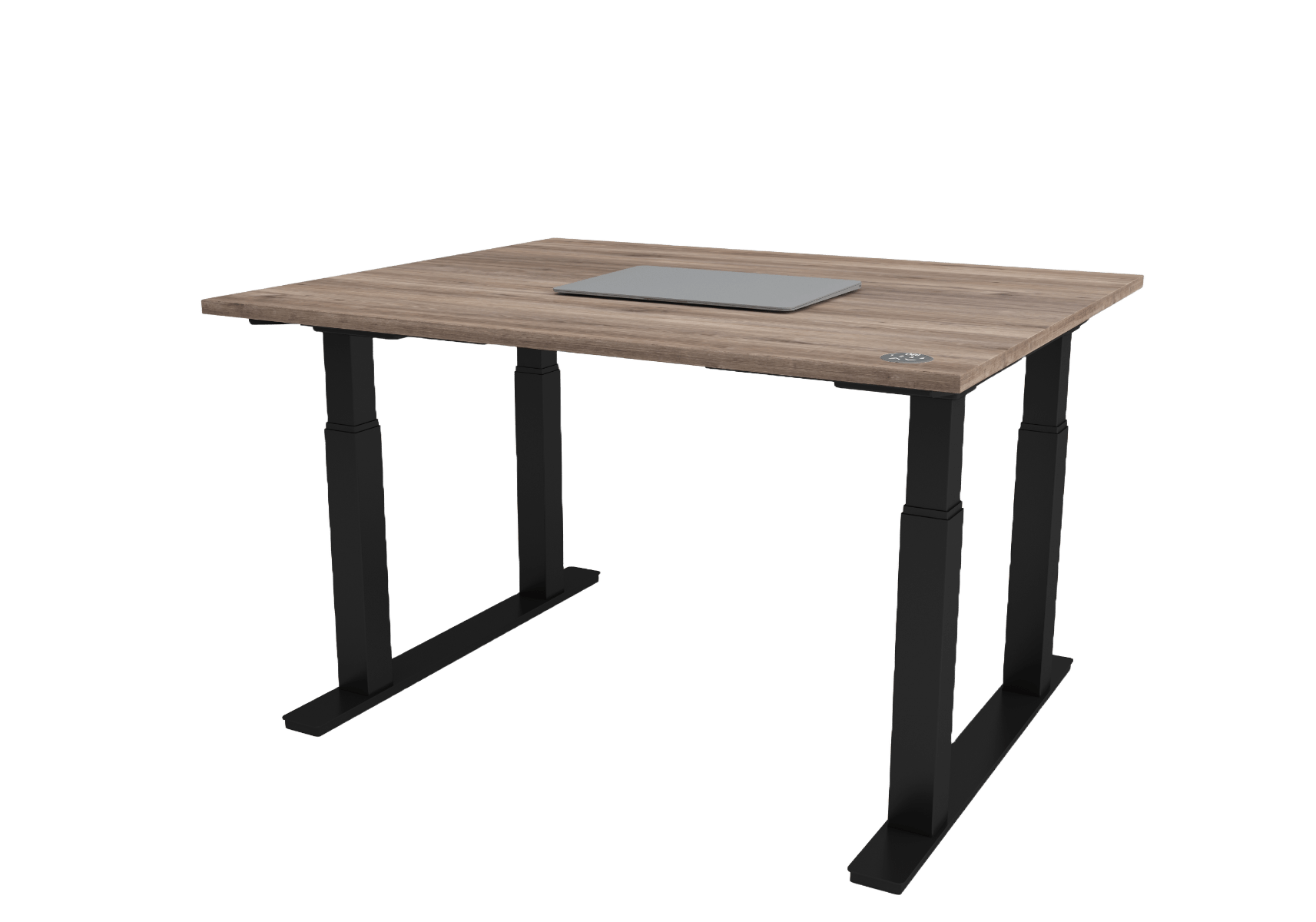

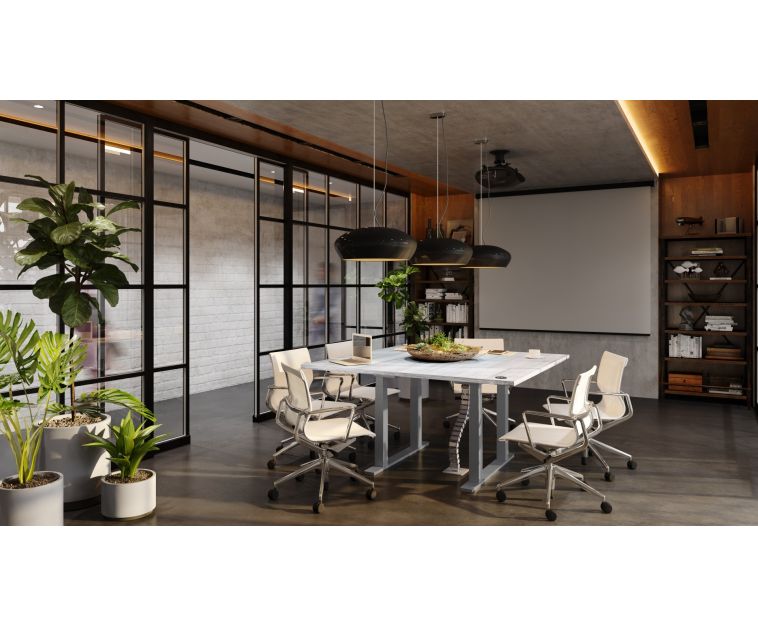

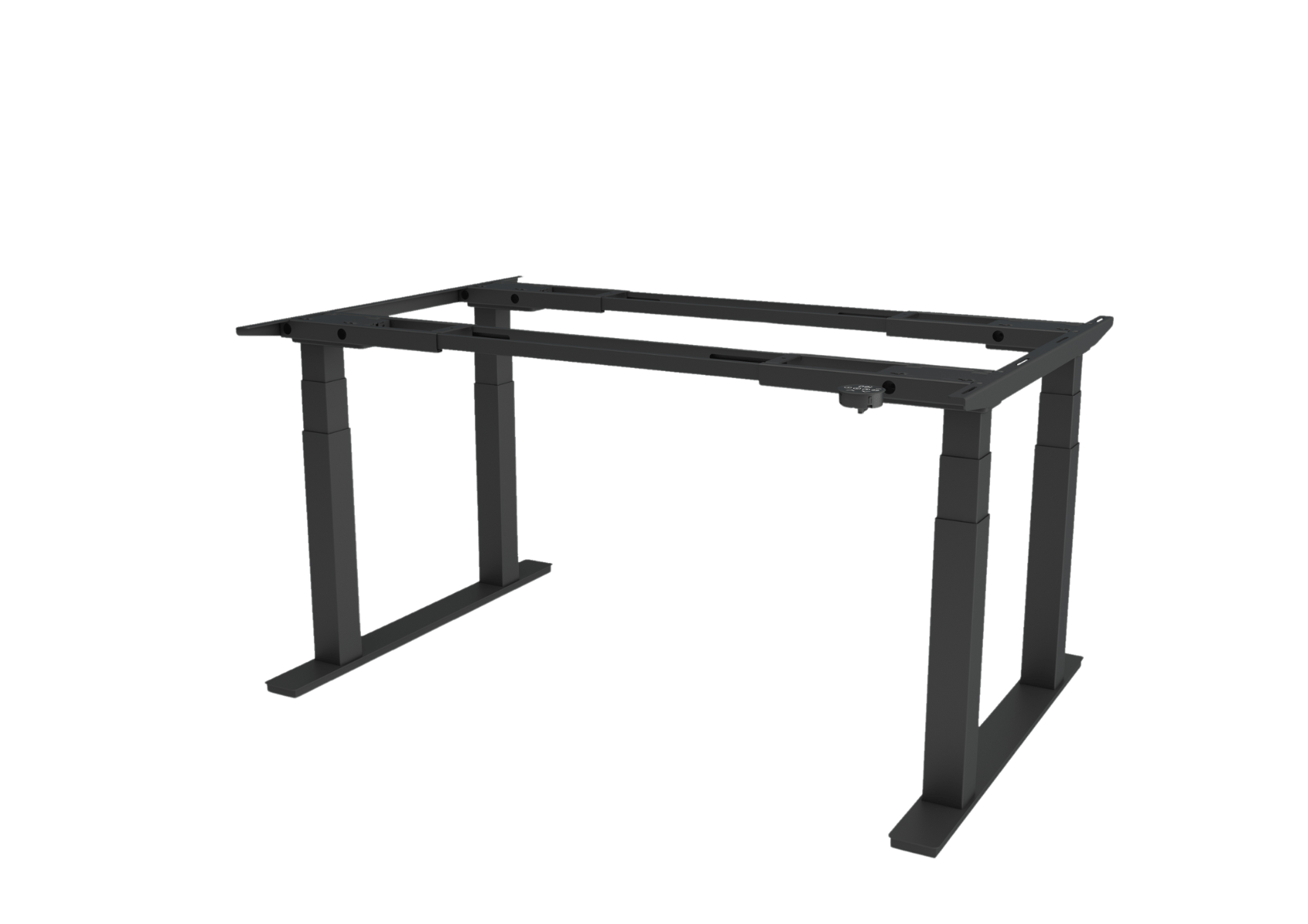

Our height-adjustable desk frame with four motors. This powerful frame can be used as a conference table and has a maximum load capacity of 200 kg.
LIFTING SYSTEM TECHNICAL PARAMETERS
| Leg orientation: | square |
| Height adjustable range: | 625 - 1275 mm |
| Width adjustable range: | 860 - 1000 - 1400 mm |
| Length bracket: | 1000 mm |
| Length foot: | 1000 mm |
| Foot type: | flat feet |
| Input: | 110 - 230V |
| Max. lifting capacity: | 200 kg |
| Warranty period: | 5 years |
| Noise level: | <50 db |
| Max. speed: | 40 mm/s |
SPECIAL FEATURES
| ▸ TDH6 handset including 4 memory positions |
| ▸ Integrated T-touch sensitive anti-collision sensor |
| ▸ Timotion technology motors, control box & handset |
COLOURS
| ▸ Aluminum |
| ▸ Black |
| ▸ White |
PACKAGING
| Sizes & gross weights per box: |
| ▸ box 1/2 of frame: 138 (L) x 32,5 (W) x 22 (H) cm / 29 kg |
| ▸ box 2/2 of frame: 138 (L) x 21,5 (W) x 22 (H) cm / 29 kg |
ONLINE INSTRUCTIONS
| Click on the icon below to see the instructions |
|
Together with our logistics partners, we strive to deliver all products throughout Europe within 5 working days after shipment from our warehouse. In terms of transport, we offer two options from which you can choose during the ordering process;
Option 1 - DAP incoterms:
In this option we take care of the transport by using one of our logistics partners. The transport costs will be communicated prior to booking the transport so that you will not be faced with any surprises.
Option 2 - EXW incoterms:
With this option you take care of the transport yourself. In consultation, we will ensure that your shipment is ready when your logistics partner has planned the pick up from our warehouse.
If you have any questions about the logistics process, please contact us via sales@aoke-europe.com or +31 475 729 890.
If you want to view this page you must login first
Built to handle heavy loads, this frame comes with a 200 kg lifting capacity. The square construction offers stability, making it ideal for supporting multiple monitors, desktop equipment, or other heavy items.
